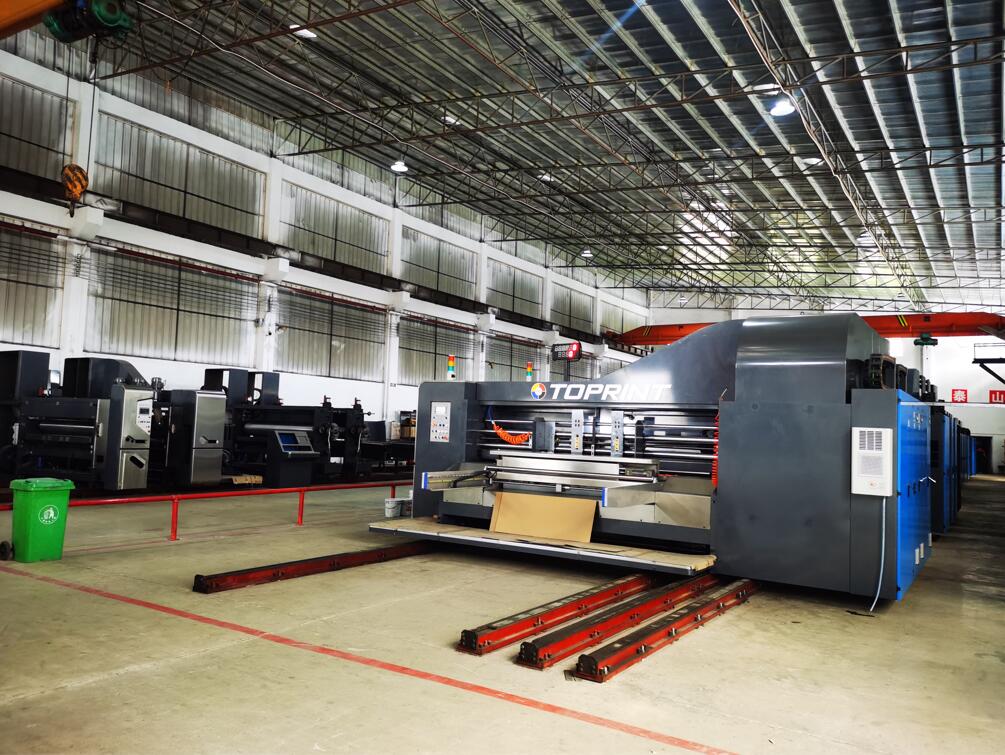

Two Color Flexo Printer Slotter Die-Cutter Carton Making Machine
General Specifications
TP-CR Series open & close type flexo printer slotter represents of Quality, Consistency, Efficiency and Economic.
It is fully computerized control (Windows System), available for connected with ERP system, Remote Control for easy maintaining, high capacity, fast order change, stable and durable.

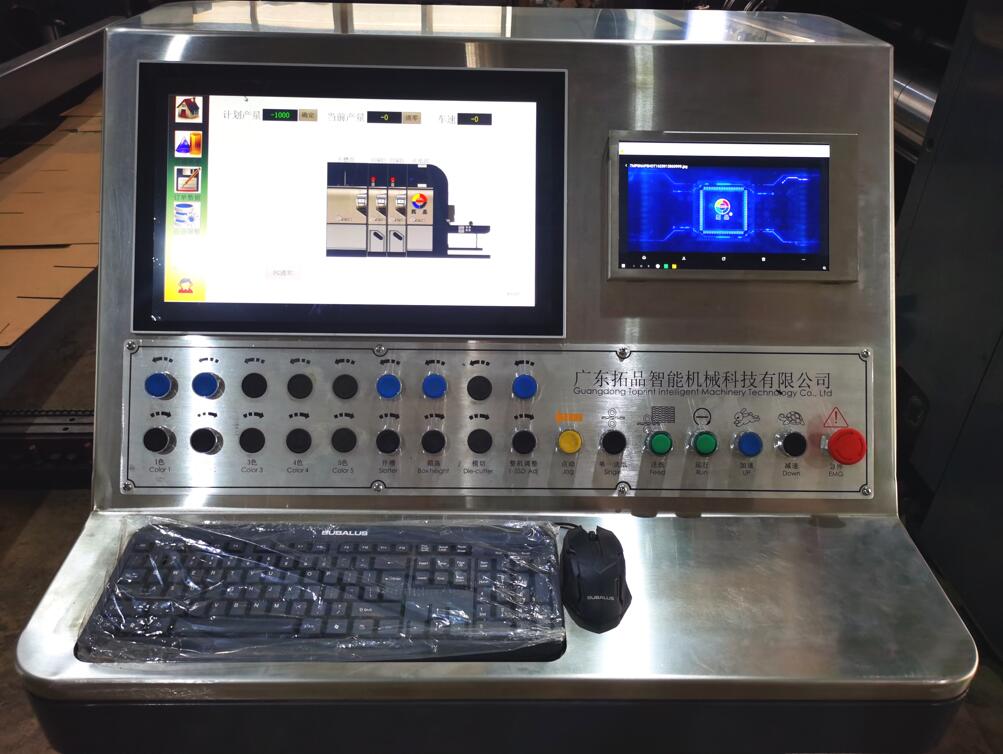

The Central Control table including two touch screens, one is windows-based computer, another one is Lenovo panel.
Windows-based Computer with Keyboard: easy to operate and order change by one button, all the new order or storage orders can be operated here, also this is available to connect with ERP system, so you can manage the orders by Corrugator line ERP system, greatly increase the working efficiency.
Interactive Operating Manual: Lenovo Panel, Toprint is the first company in the corrugated machine industry who built the Interactive Operating Manual to support our customer for more easy operation, maintain, repair and etc….
Lead Edge Feeder: Taiwan Transmission System with 3 years warranty, 4 sets Dust Blowers, feeding suction volume can be adjusted, main motor use Siemens, Non-crush Feeding System Optional.
Vaccum Transfer Printing Unit: The Vaccum suction volume can be adjusted according to cardboard size, Register Servo Control, transfer wheels ceramic coated, Ceramic anilox roller, doctor blade Optional.
8 Shafts Slotter with Pre-creaser, Creasing, re-creasing, Slotting: Heavy duty slotting unit, the weight is around 11tons for 1224 model, full computerized control, register servo control.
Die-cutter Unit: The anvil cylinder was independent control by frequency motor for line speed compensation, to increase the die-cutting accuracy, with automatic grinding system for anvil cover rapid use.
Main Parameters:
|
Model
Parameters (MM) | 1224 |
| Max.Sheet Size (FxA) | 1190x2000 |
| Skip Feed Size (FxA) | 1400x2000 |
| Min.Sheet Size (FxA) | 380x720 |
| Max.Printing Area (FxA) | 1190x1960 |
| Top Speed (Sheet/min) | 250 |
| Economic Speed (sheet/min) | 120-200 |
| Sheet Thickness | 1.5-11 |
| Printing Plate Thickness (Sponge + Film + Plate) | 7.2 |
| Main Working Power (KW) | Flexo Printer + Inline | 70+40 |
| Total Power(KW) | Flexo Printer + Inline | 100+51 |
| Dimension (mm) | Flexo Printer | 10500x5200x2630 |
| Inline Folder Gluer | 14300x2600x2650 |
| Frame Thickness | Flexo Printer | 60mm |
| Folder Gluer | 40mm |
