Full Computerized High Speed Three Color Flexo Printer Slotter Die-cutter (RDC) Carton Box Making Machine for Sale from South of China
SUMMARY OF MACHINE
Automatic Corrugated Box Making Machine, also called automatic HD Flexo printer with Varnishing and Drying, is designed to process corrugated cardboard into products such as high-quality cartons, boxes, trays, displays etc.
It can finish the process of feeding, printing, varnishing and drying at one time. All of units can be locked when it works and moveable for cleaning and maintaining.
The standard model of corrugated box making machine includes TP-CR-1224-(4+1). It is high-level one which controlled by computer with order management and sheet transfer with vacuum box.

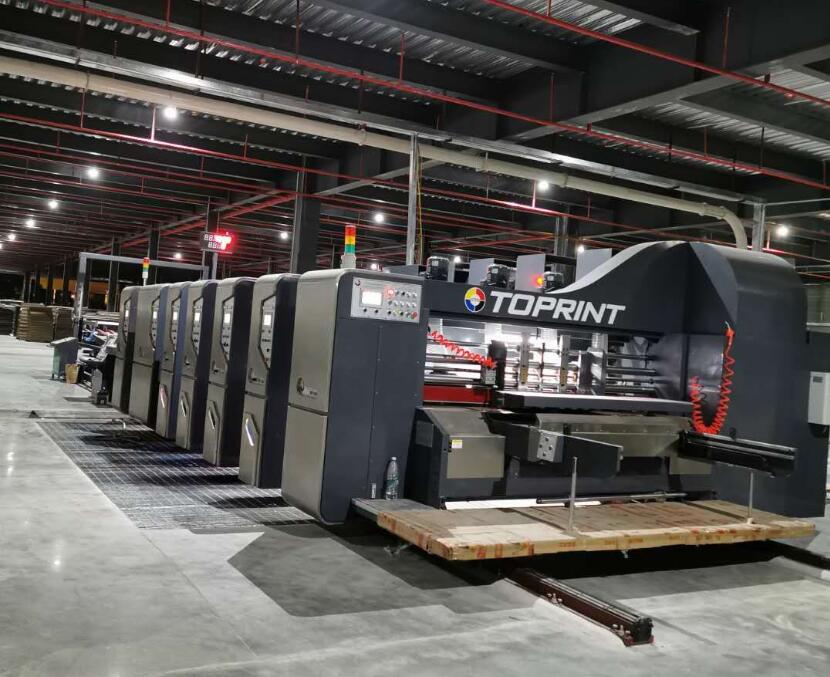

The Photo of Machine
MAIN SPECIFICATIONS
| Model | TP-CR |
| Size | 1224 |
| Max.Sheet Size (FxA) | 1190x2400 |
| Skip Feed Size (FxA) | 1400x2400 |
| Min.Sheet Size (FxA) | 350x720 |
| Max.Printing Area (FxA) | 1190x2360 |
| Top Speed(Sheet/min) | 180 |
| Economic Speed (sheet/min) | 60-120 |
| Sheet Thickness | 1.5-11 |
| Thickness of Printing Plate | 7.2 |
| Main Working Power(KW) | 4 Colors Slotter Die-cutter | 105 |
| Stacker + Vibrator | 3+10 |
| Total Power(KW) | 4 Colors Slotter Die-cutter | 120 |
| Stacker + Vibrator | 3+10 |
| Dimension (mm) | 4 Colors Slotter Die-cutter | 9900x5350x2650 |
| Stacker | 6500x3970x3000 |
| Vibrator | 3200x3700x1100 |
MACHINE FEATURS
Lead edge feeder with vacuum absorber.
Upper Dust remover with brushers
Sheet transfer with rubber pull rolls.
Gap of feeding rollers, Side baffles are computerized with order managing.
- Printing Unit / Vanish Unit
Sheet transfer with vacuum box.
Ceramic Anilox roller with Chambered doctor blade system.
Automatic wasing system.
Gap of anilox roller, printing drum, vacuum box and horizontal and vertical movement are computerized with order managing.
Varnishing Unit-Same as Printing unit
Register Servo Control, more precision.
Ceramic with Doctor Blade for High Graphic Printing.
Sheet transfer with Vacuum box.
IR drying system, the IR lamp is independently control according to the sheet length.
The tempurature can be adjusted accordly to needs.
Frequency Control to save power.
Prolong Drying Unit to support the ink to get drying must faster and increase the speed.
ACCURACY ASSURANCE
| Feeding | ≤ ±1.5 mm |
| Printing(4 colors) | ≤ ± 0.3 mm
|
PRINTING PHOTOS

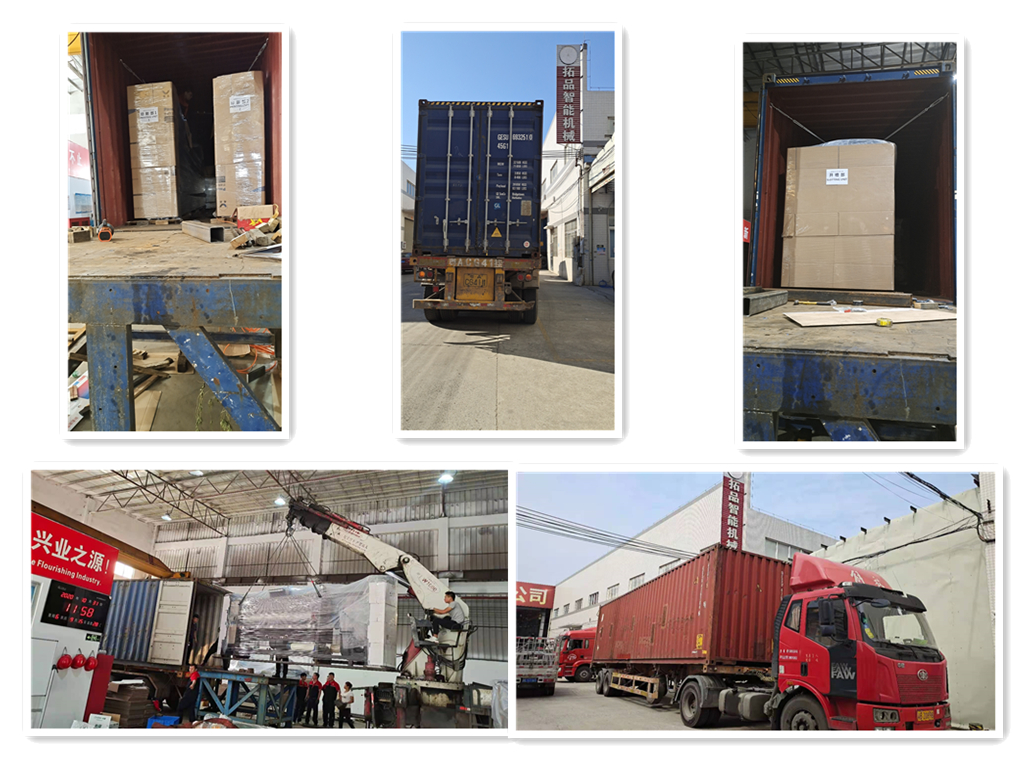

LOADING PHOTOS
For more information, please feel free to contact with us.
THANK YOU!!!
